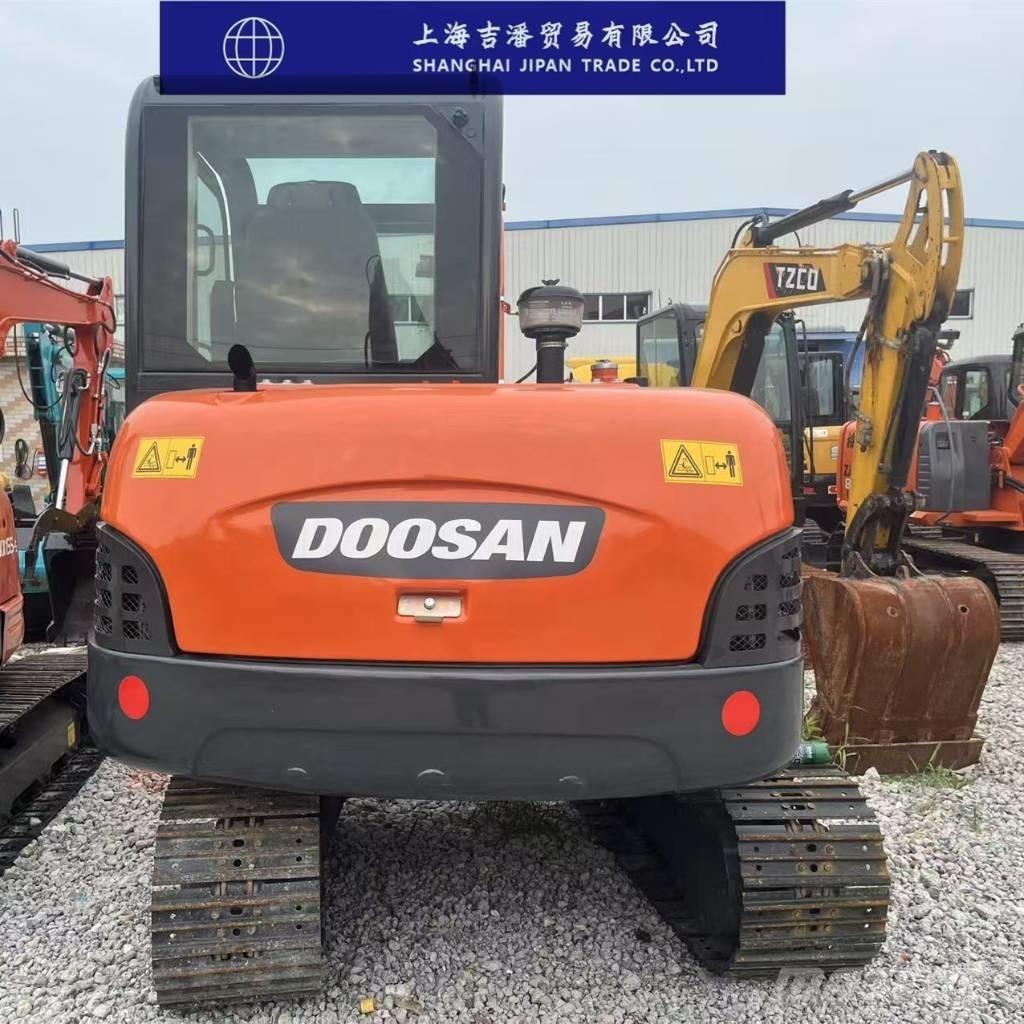

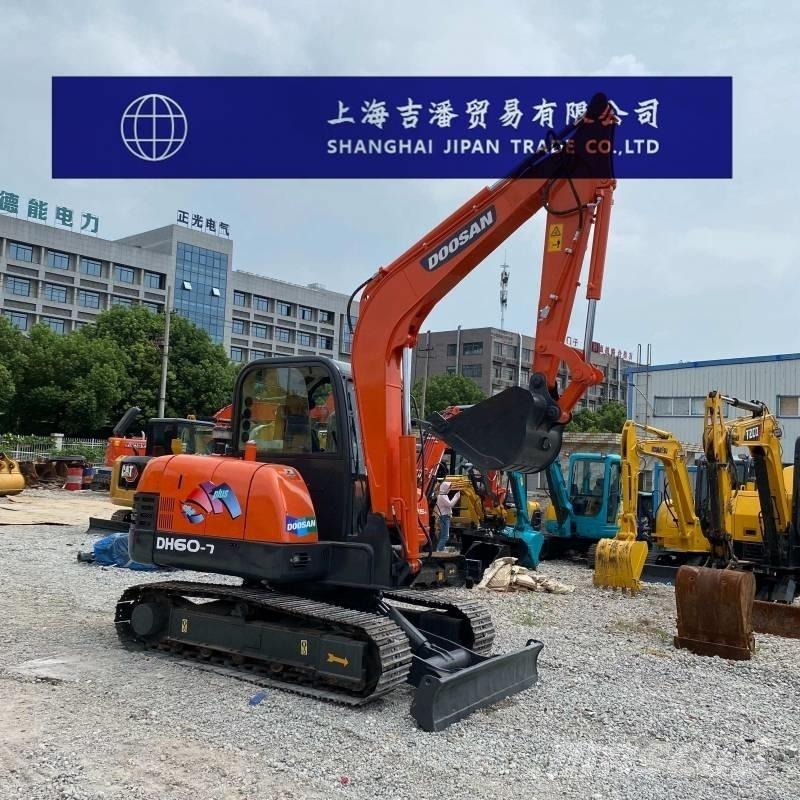

Doosan DH 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DH55-V Excavator Parameter Configuration specification Bucket capacity (m³) 0.175 The working weight of the whole machine (kg) is 5250 Place of origin: Yantai, Shandong Tonnage (tons) 5 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Stick digging force (kN) 24.5 Rotational speed (rpm) 2200 Travel speed (km/h) 2.4-3.8 Bucket digging force (kN) 31.4 dynamical system Cooling method: Water cooling Rated power (kw/rpm) 40.5/2200 Engine model Isuzu 4JB1 Hydraulic system The maximum flow rate of the main pump (l/min) is 2×55 Working Hydraulic Oil Circuit (Mpa) 20.6 Undertravel hydraulic circuit (Mpa) 17.65 Slewing hydraulic circuit (Mpa) 17.65 Main pump type: variable displacement axial column race pump Pilot pump flow rate (L/min) 14.3 Body size Total Track Width (mm) 1880 Track shoe width (mm) 400 Track gauge (mm) 1480 Counterweight ground clearance (mm) 700 Total track length (mm) 2545 Minimum ground clearance (mm) 350 Cab total height (mm) 2565 Rear end slewing radius (mm) 1550 Total length of transport (mm) 5940 Total width of transport (mm) 1880 Total height of transport (mm) 2565 Boarding width (mm) 1820 Scope of work Maximum vertical digging depth (mm) 3025 Maximum unloading height (mm) 3630 Maximum digging height (mm) 5330 Maximum digging depth (mm) 3890 The maximum excavation radius of the stopping surface (mm) is 5953 Maximum digging radius (mm) 6100
