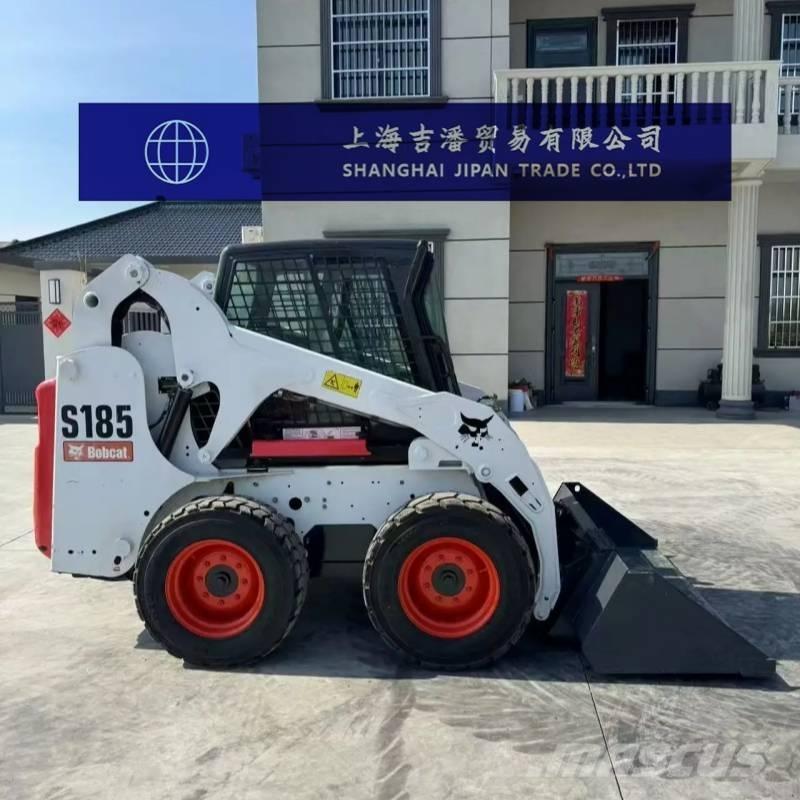

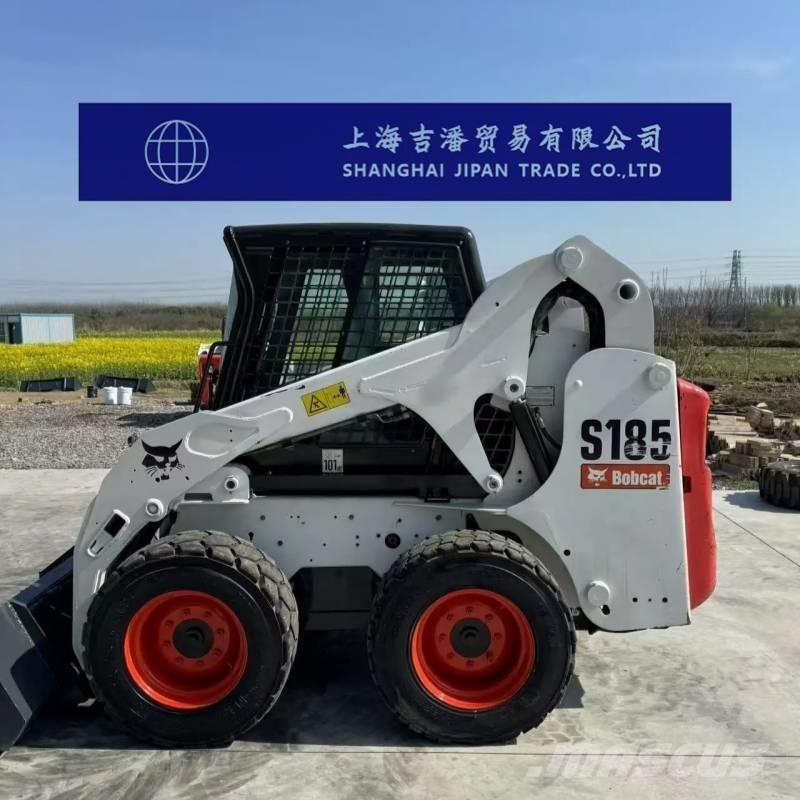

Bobcat S 185

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Bobcat S185 skid steer loader Basic performance Rated loading capacity (kg) : 924 Overturning load (kg) : 1849 The overall weight of the machine (kg) is 2821 The form of the lifting mechanism is vertical lifting Load capacity (ton) : 0.8-1 ton Engine Engine model: Kubota V2607 Rated power: 44.8 KW Maximum torque (N.m) : 163.8 Displacement (L)2.6 Number of cylinders: 4 Through performance The tire size is 10×16.5 Forward turning radius (with bucket) (mm)2001 Departure Angle (°)23 Hydraulic system System security pressure (bar)228 Oil capacity Fuel tank (L) : 90.8 Scope of work Maximum unloading height (mm) : 2310 Unloading distance (at maximum height) (mm) : 753 The maximum height of the bucket hinge pin (mm) is 3002 The unloading Angle (°) at the maximum unloading height is 42 The retraction Angle (°) of the bucket on the ground is 25 The retraction Angle (°) of the bucket at its highest point is 95 Overall machine specification Total length (with bucket) (mm)3309 Total length (without accessories) (mm) : 2588 Full width (tire edge) (mm)1676 Full width (bucket edge) (mm)1727 Full height (up to the top of the cab) (mm)1938 Wheelbase (mm) : 1030 Minimum ground clearance (mm) : 190 Standard/Optional accessories No adjustment of the drive chain is required The dual-channel cooling system is standard The intelligent fan cooling system is standard equipment The self-diagnosis system is optional The joystick (SJC) is optional A luxury dashboard is available as an option The automatic engine stop device is standard
