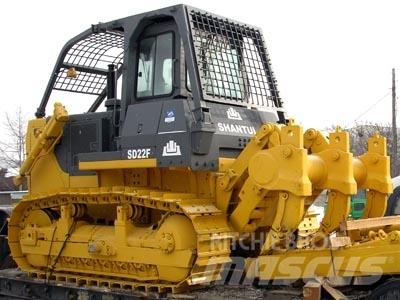

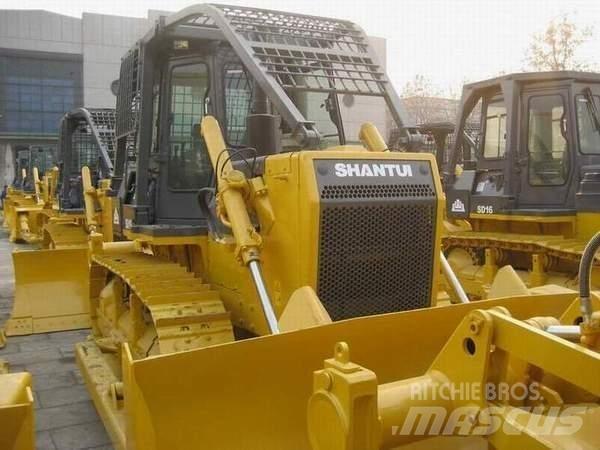

Shantui SD22F

Single ripper / Three-shank ripper

L×W×H (Ripper not included) 5750×3725×3395mm Operating weight (Ripper not included) 23.4t Engine Cummins NT855-C280S10 Rated power 162/1800kW/rpm Gradeability 30° Blade type Straight tilt blade Blade width 3725×1315mm Dozing capacity 6.4m3 Ma× drop below ground of blade 540mm Lift height of blade 1210mm Ripper type Single ripper Three-shank ripper Ripping depth of ripper Single ripper 695mm Three-shank ripper 666mm Lifting height of ripper Single ripper515mm Three-shank ripper 555mm Number of carriers (each side) 2     Number of track rollers (each side) 6 Number of track shoes (each side) 38 Width of track shoe 560mm Track gauge 2000mm Ground length and ground pressure 2730-0.066mm/MPa Pitch 216mm Forward speed 0–3.6km/h 0–6.5km/h 0–11.2km/h Reverse speed 0–4.3km/h 0–7.7km/h 0–13.2km/h
