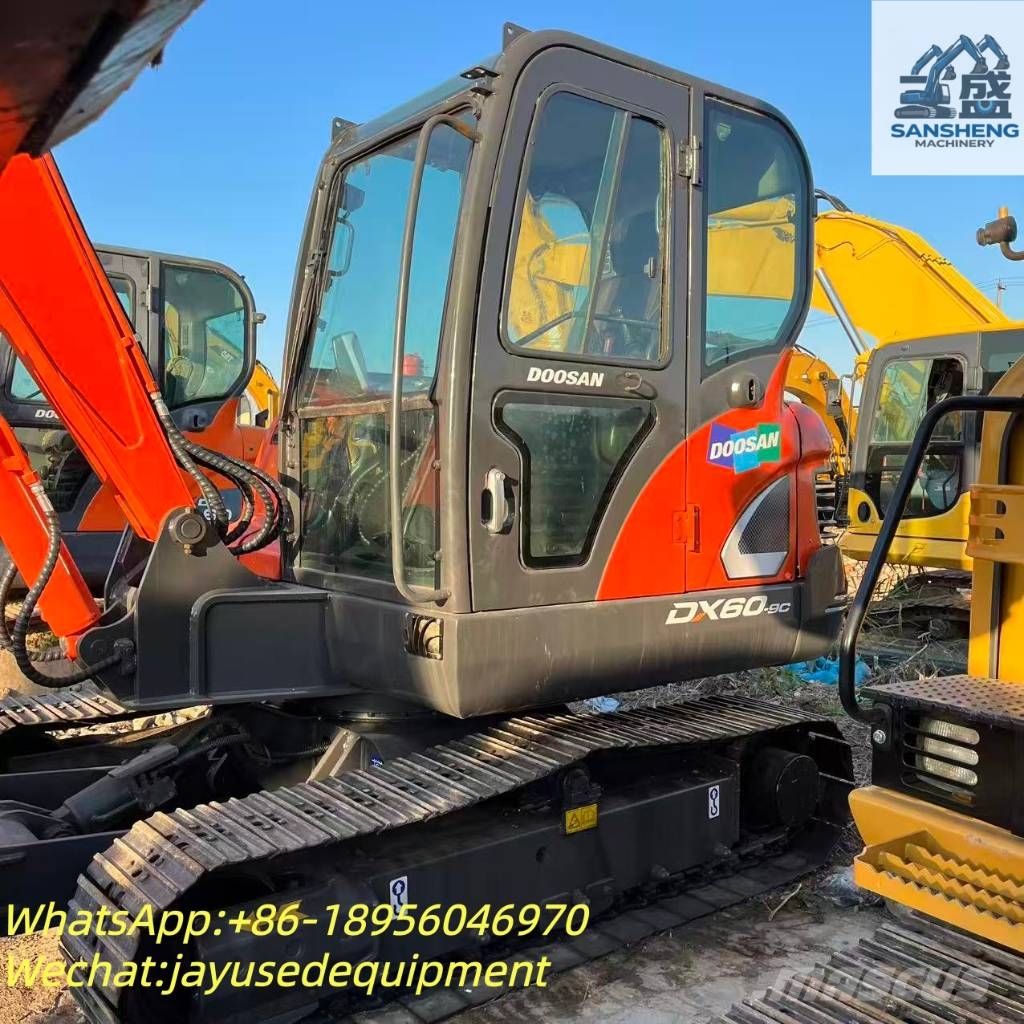

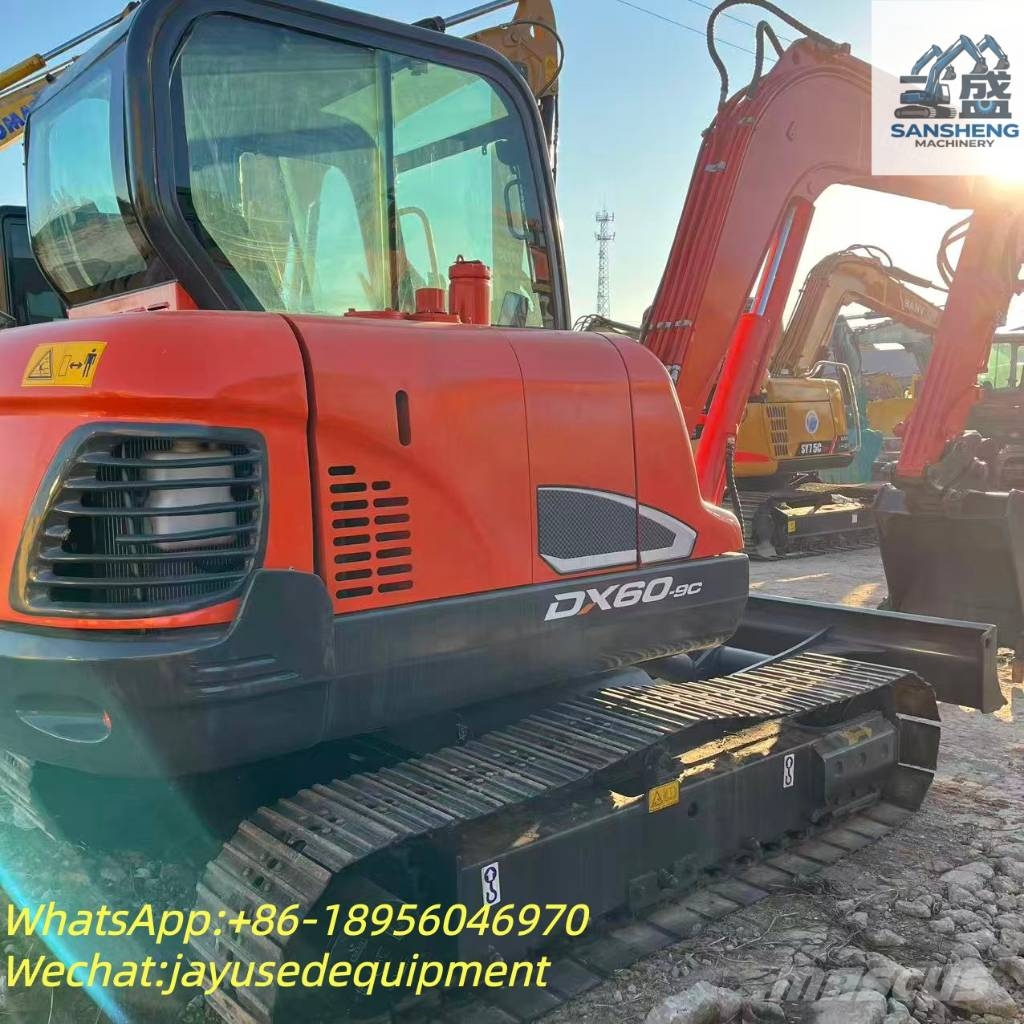

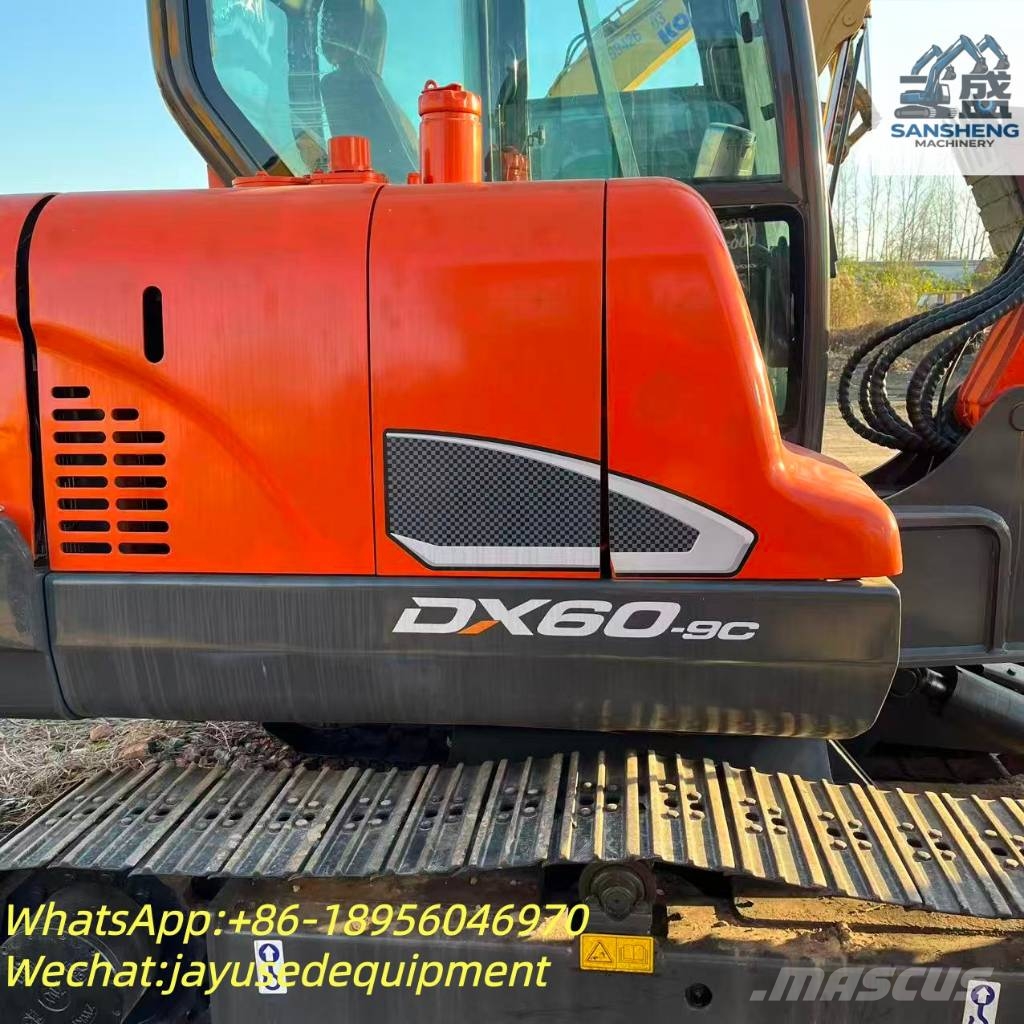

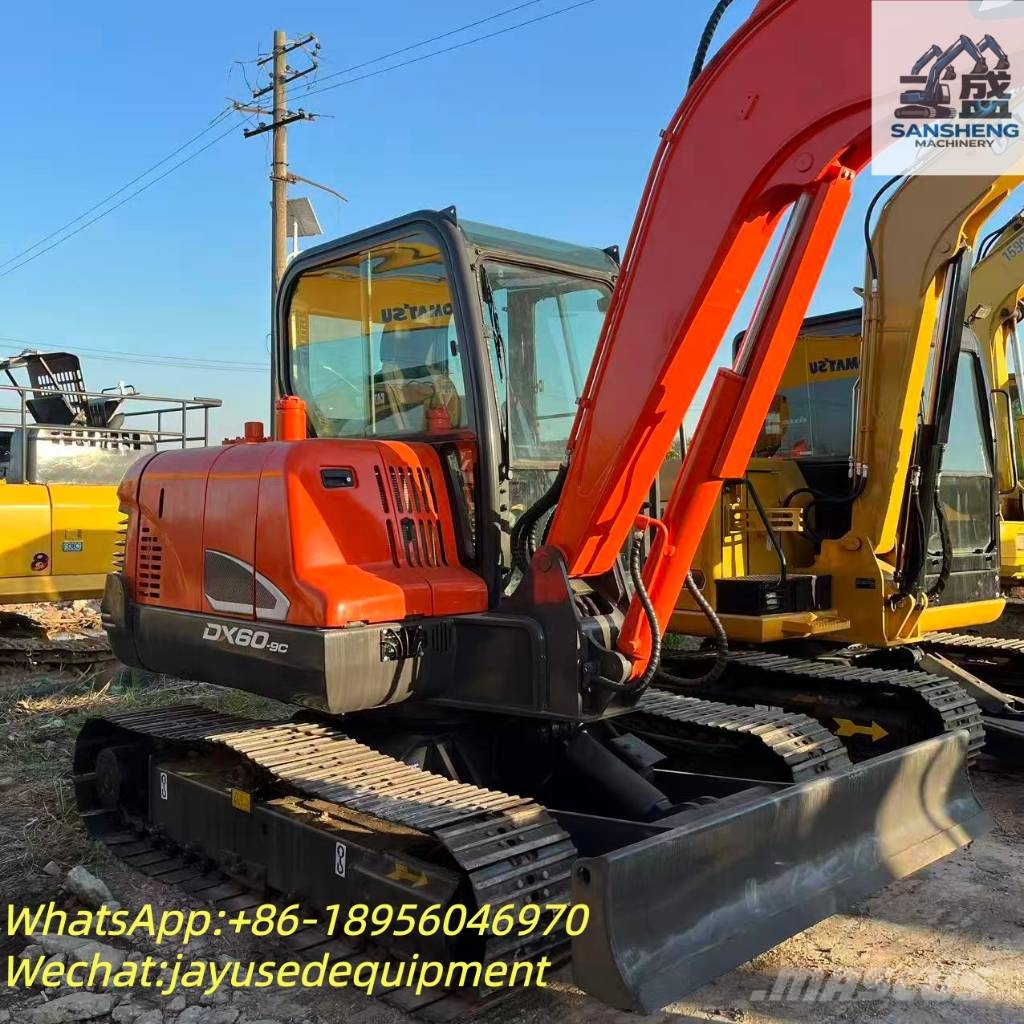

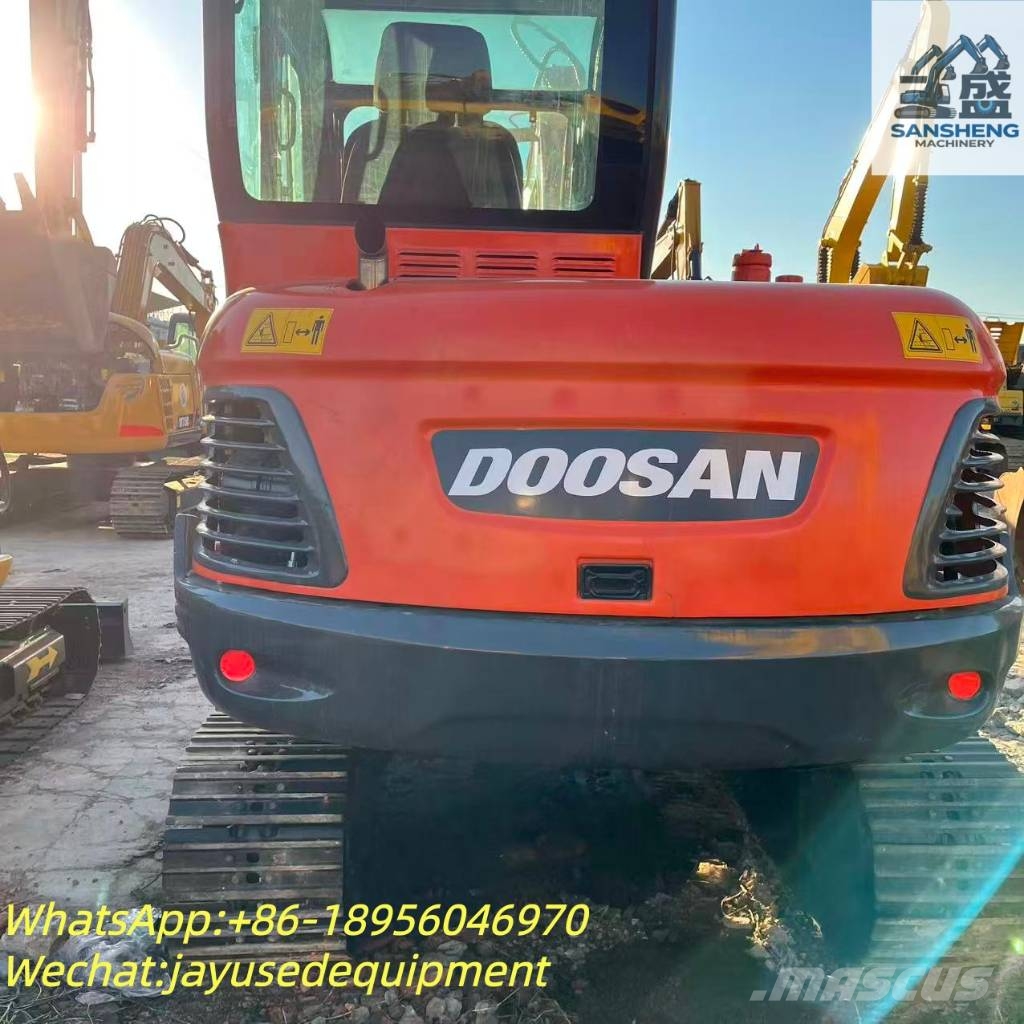

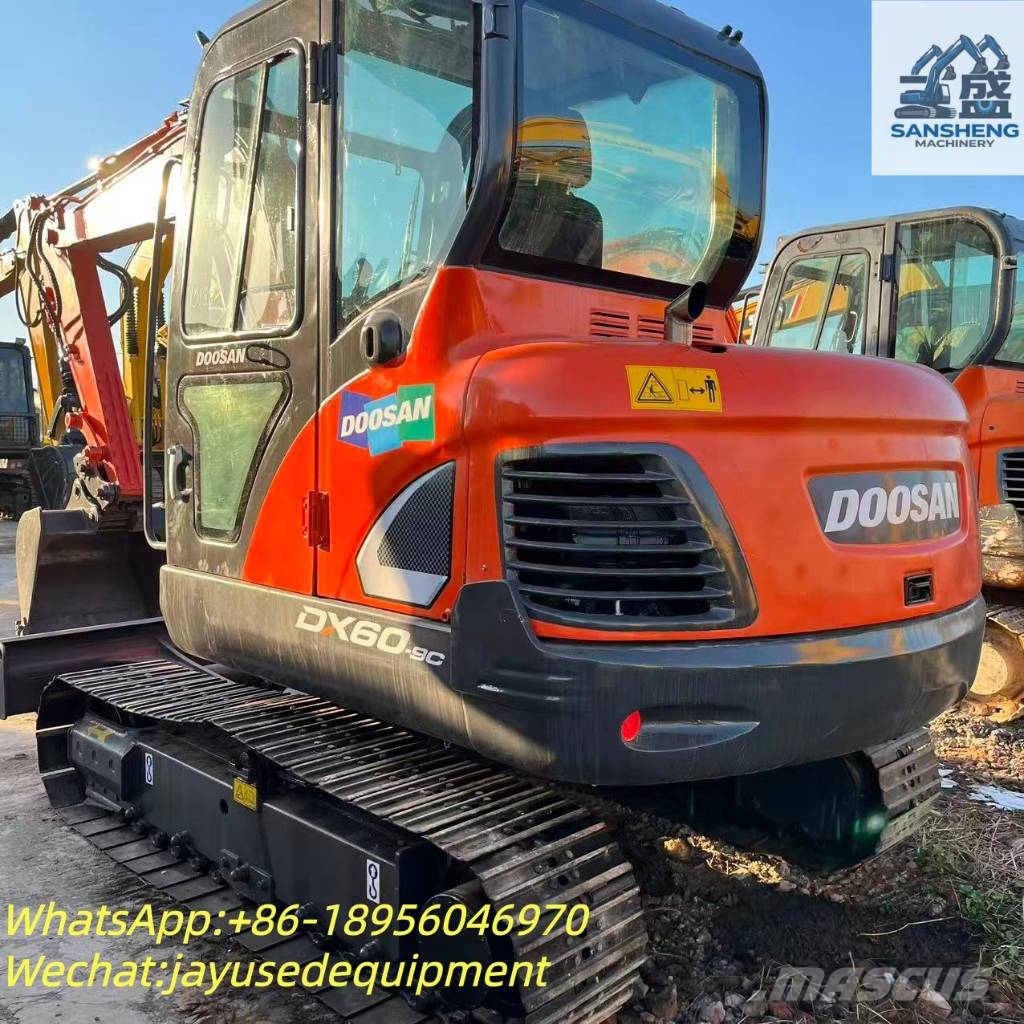

Doosan DX 60-9 C

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp,Clamshell Bucket, Rotary Screen,Crusher Bucket,Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel Service Hours: 24/7 available Address: Hefei,Anhui, China Contact Person: Mr.Jay Lee WhatsApp:+86 18956046970 Mobile:+86 18956046970 WeChat: jayusedequipment Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time- efficient Bulk Carrier:Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types

Bucket type: Counterbalanced bucket Tonnage (tons): 6 Overall working weight (kg): 5700 Bucket capacity (m³): 0.21 Pole length (mm): 3000 Swing arm length (mm): 160 Performance Rotation speed (rpm) 9 Rotation torque (Nm) 971 Travel speed (km/h) 4.2/2.3 Ground contact pressure (Kpa) 30 Bucket digging force (kN) 4.2 tons Bucket arm digging force (kN) 2.8 tons Engine model D24C DIESEL Rated power (kw/rpm) 38.9/2100 Number of cylinders (units) 4 Cylinder diameter × stroke (mm) 90 × 94 Working mode In-line, turbocharged Main pump type Variable piston pump Travel hydraulic motor type Axial piston hydraulic motor Maximum flow rate of main pump (l/min) 2 × 57.8 Working hydraulic oil circuit (Mpa) 240 Travel hydraulic circuit (Mpa) 240 Rotation hydraulic circuit (Mpa) 220 Fuel tank (L) 115 Hydraulic system (L) 62 Total transport length (mm) 5870 Total transport width (mm) 2000 Total transport height (mm) 1983 Driver's cab full height (mm) 2565 Vehicle width (mm) 1850 Total length of tracks (mm) 2540 Track plate width (mm) 400 Total width of tracks (mm) 2000 Minimum ground clearance (mm) 700 Front-end working device minimum turning radius (mm) 2365 Rear-end turning radius (mm) 1660 Maximum digging radius (mm) 6136 Maximum digging radius when the machine is stationary (mm) 6000 Maximum digging depth (mm) 3807 Maximum digging height (mm) 5788 Maximum unloading height (mm) 4064 Maximum vertical digging depth (mm) 3037 Maximum effective digging depth (mm) 3388 Tilting plate width × height (mm) 2000 × 350
